    Medical Water Purification Systems Healthcare Dialysis Water Treatment Plant

    Ask Lasest Price
    Brand Name : CHONGYANG
    Model Number : CY-BYXT-1000L/H
    Certification : ISO ,CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets/Month
    Delivery Time : With 30-40 Days
    • Product Details
    • Company Profile

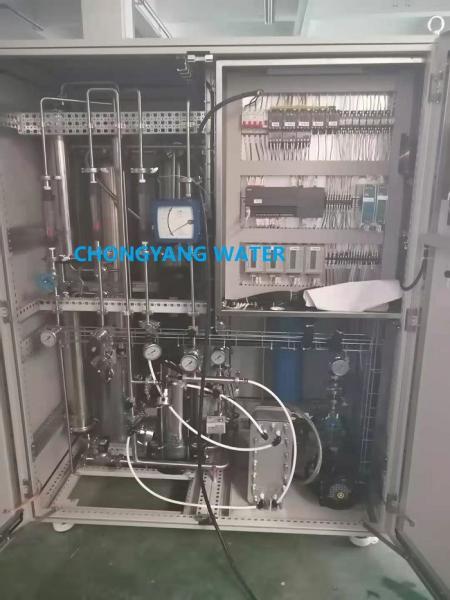

    Medical Water Purification Systems Healthcare Dialysis Water Treatment Plant


    Product Name:Healthcare Water Purification System


    What are the key factors to consider when selecting a hemodialysis water system?


    Pre-treatment options: The system should include pre-treatment options such as sediment filtration, activated carbon filtration, and pH adjustment to remove larger particles and impurities from the feed water before it enters the main treatment stages.


    Treatment stages: The system should include filtration, deionization, and disinfection stages to produce high-quality water for hemodialysis treatment. The system should also have the ability to monitor and adjust the water quality at each stage of the treatment process.


    Maintenance requirements: The system should be designed for easy maintenance, with simple components that can be easily replaced or cleaned as needed. The system should also include features such as automatic flushing and disinfection to ensure that the system remains clean and free of contaminants.


    The Parameter:

    Type & Spec.CY-BYXT-II-500/1000/1500/2000/3000/4000L/H
    The Raw Water QualityTap water ,TDS≤200ppm,Pressure 0.2~0.4Mpa,Water Temperature:5~40℃
    Supply Power380VAC,50HZOperation Pressure0.2-0.6Mpa
    Water QualityMeet YY0572-2005,meet USA AAMi/ASAIO Standard of hemodialysis water ,removal rate of bacterial endotoxin ≥99%,No dead cavity.
    Production Water Quantity500L/H1000L/H1500L/H2000L/H3000L/H4000L/H
    Power2500VA3500VA5000VA7000VA10000VA15000VA
    Inlet DiameterDN 25DN 32DN 40DN 40DN 50DN 50
    Outlet DiameterDN 20DN 25DN 25DN 32DN 32DN 40
    Suitable Beds5-1010-2020-3030-4040-6060-80
    Size2000×750×1600mm2200×750×1600mm2500×850×1600mm3200×850×1600mm
    Weight580kg800kg980kg1100kg1500kg2000kg
    Installation Area10㎡15㎡25㎡35㎡40㎡55㎡

    Note: 1. The temperature requirement of usage &installation is 5-40℃,Humidity ≤80%, There is no direct sunlight in the equipment room , The floor drain is set on the ground and the drainage is sooth .

    2. The bearing capacity of room should meet installation of requirement .This product should avoid running in environment with strong electromagnetic interference .




    FAQ:


    1.Question:Can you customize various capacity for us ?

    Answer:Yes. We can customize for you .


    2. Question: What is the raw water quality ?

    Answer: Tap water, Underground Water ,it is better to be water quality that under TDS 400 PPM.


    3.Question:How to install the big project of water treatment equipment ?

    Answer : CHONGYANG Provide turnkey projects .


    4. Question: How long is the warranty period ?

    Answer: 1 year.


    5. Question:How to settle water equipment's faults ?

    Answer :CHONGYANG WATER can provide remotely repair for software , Change new parts without fee for hardware if it is till during guarantee period .
